ATE Disco de freno original de 2 piezas (24011201561) para Citroën, Fiat, Lancia y Peugeot
90,75 €
(impuestos inc.)
75,00 € fiscales excl.
Número de parte:
ATE 24.0112-0156.1
(240112-01561)
- Diámetro exterior [mm]: 272,0
- Diámetro interior [mm]: 134,0
- Grosor del disco de freno [mm]: 12,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 412156
Información logística:
- Código Ean: 4006633105804
- Peso: 8.69kg
Specification of ATE 24.0112-0156.1 / 240112-01561 / 24011201561:
| OE Number | Reference info |
| CITROËN 4246 P4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246P4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9464222687 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9464222688 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 P3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246P3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C8 (EA_, EB_) Fitting Position Rear Axle | 2002-07 - | 100 | 136 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2005-09 - | 103 | 140 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 116 | 158 | 2230 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 150 | 204 | 2946 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 79 | 107 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 80 | 109 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 81 | 110 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year from 200702 Construction Year to 201407 Fitting Position Rear Axle | 2006-07 - | 88 | 120 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2006-03 - | 100 | 136 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2006-03 - | 120 | 163 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 94 | 128 | 2179 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2007-06 - | 120 | 163 | 2179 | MPV |
| CITROËN C8 (EA_, EB_) Fitting Position Rear Axle | 2006-06 - 2012-12 | 125 | 170 | 2179 | MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2004-11 | 100 | 136 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2004-06 - 2011-12 | 103 | 140 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2007-08 | 116 | 158 | 2230 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2007-10 | 150 | 204 | 2946 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2009-12 | 81 | 110 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2006-07 | 94 | 128 | 2179 | Box Body/MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2002-08 - 2011-06 | 100 | 136 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2002-08 - 2011-06 | 150 | 204 | 2946 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2003-05 - 2006-08 | 79 | 107 | 1997 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2002-08 - 2006-08 | 80 | 109 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2006-05 - 2011-06 | 88 | 120 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2006-05 - 2011-06 | 100 | 136 | 1997 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2002-08 - 2006-08 | 94 | 128 | 2179 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2008-03 - 2011-06 | 120 | 163 | 2179 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2008-03 - 2011-06 | 125 | 170 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 100 | 136 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 150 | 204 | 2946 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2003-07 - 2010-11 | 79 | 107 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 80 | 109 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-06 - 2010-11 | 88 | 120 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-07 - 2010-11 | 100 | 136 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 94 | 128 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-04 - 2010-11 | 120 | 163 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2008-03 - 2010-11 | 125 | 170 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 100 | 136 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2005-09 - | 103 | 140 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 116 | 158 | 2230 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 150 | 204 | 2946 | MPV |
| PEUGEOT 807 (EB_) Fitting Position Rear Axle | 2002-06 - 2006-05 | 79 | 107 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 200605 Fitting Position Rear Axle | 2004-04 - | 80 | 109 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200611 Construction Year to 201406 Fitting Position Rear Axle | 2006-02 - | 88 | 120 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2006-06 - | 100 | 136 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2009-06 - | 120 | 163 | 1997 | MPV |
| PEUGEOT 807 (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 100 | 136 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 94 | 128 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Construction Year to 201406 Fitting Position Rear Axle | 2006-06 - | 120 | 163 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Fitting Position Rear Axle | 2006-06 - 2010-06 | 125 | 170 | 2179 | MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2002-06 - 2006-05 | 79 | 107 | 1997 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 80 | 109 | 1997 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 94 | 128 | 2179 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2010-05 - | 120 | 163 | 1997 | Box Body/MPV |
24.0112-0156.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Citroën
Fiat
Lancia
Peugeot - Número de Comercio
- 412156
- País de origen
- Chequia

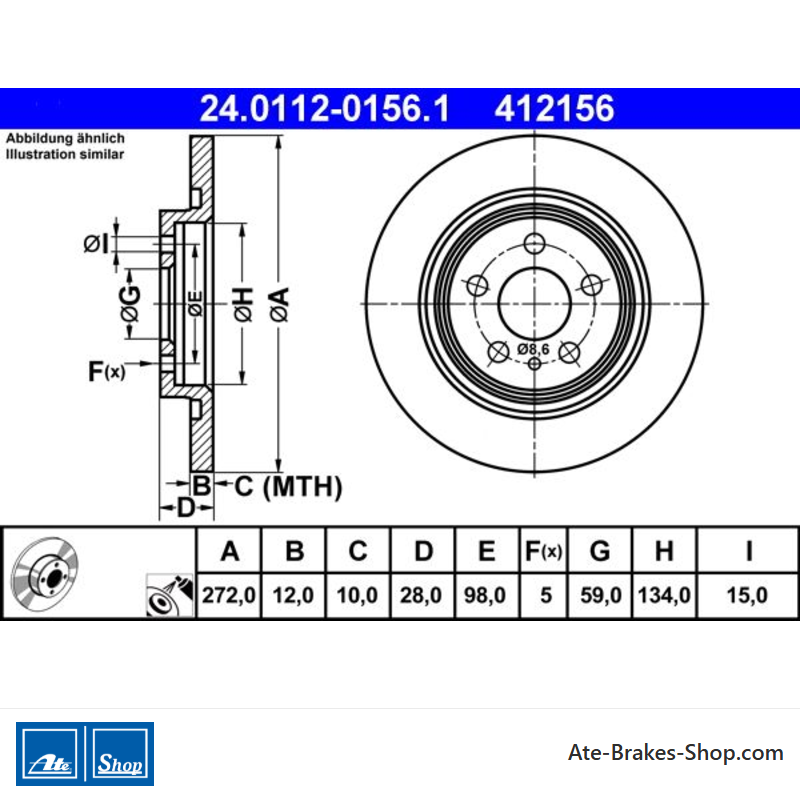

- Altura
- 28,0
- Diámetro exterior [mm]
- 272,0
- Grosor del disco de freno [mm]
- 12,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 98,0
- Diámetro de centrado [mm]
- 59,0
- Diámetro interior [mm]
- 134,0
- Diámetro del diámetro del diámetro [mm]
- 15,0
- Espesor mínimo [mm]
- 10,0
Referencias específicas
- ean13
- 4006633105804
- MPN
- 2401120156102
ATE 24.0112-0156.1
(240112-01561)
- Diámetro exterior [mm]: 272,0
- Diámetro interior [mm]: 134,0
- Grosor del disco de freno [mm]: 12,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 412156
