ATE Originele 2-delige remschijf (24011201561) voor Citroën, Fiat, Lancia, Peugeot
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0112-0156.1
(240112-01561)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 134,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412156
Logistieke informatie:
- Ean Code: 4006633105804
- Gewicht: 8.69kg
Specification of ATE 24.0112-0156.1 / 240112-01561 / 24011201561:
| OE Number | Reference info |
| CITROËN 4246 P4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4246P4 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249 C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 4249C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9464222687 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 9464222688 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246 P3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4246P3 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249 C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4249C0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C8 (EA_, EB_) Fitting Position Rear Axle | 2002-07 - | 100 | 136 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2005-09 - | 103 | 140 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 116 | 158 | 2230 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 150 | 204 | 2946 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 79 | 107 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 80 | 109 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 81 | 110 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year from 200702 Construction Year to 201407 Fitting Position Rear Axle | 2006-07 - | 88 | 120 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2006-03 - | 100 | 136 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2006-03 - | 120 | 163 | 1997 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2002-07 - | 94 | 128 | 2179 | MPV |
| CITROËN C8 (EA_, EB_) Construction Year to 201407 Fitting Position Rear Axle | 2007-06 - | 120 | 163 | 2179 | MPV |
| CITROËN C8 (EA_, EB_) Fitting Position Rear Axle | 2006-06 - 2012-12 | 125 | 170 | 2179 | MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2004-11 | 100 | 136 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2004-06 - 2011-12 | 103 | 140 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2007-08 | 116 | 158 | 2230 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2007-10 | 150 | 204 | 2946 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2009-12 | 81 | 110 | 1997 | Box Body/MPV |
| CITROËN C8 Van (EA_, EB_) Fitting Position Rear Axle | 2003-11 - 2006-07 | 94 | 128 | 2179 | Box Body/MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2002-08 - 2011-06 | 100 | 136 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2002-08 - 2011-06 | 150 | 204 | 2946 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2003-05 - 2006-08 | 79 | 107 | 1997 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2002-08 - 2006-08 | 80 | 109 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2006-05 - 2011-06 | 88 | 120 | 1997 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2006-05 - 2011-06 | 100 | 136 | 1997 | MPV |
| FIAT ULYSSE (179_) Fitting Position Rear Axle | 2002-08 - 2006-08 | 94 | 128 | 2179 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2008-03 - 2011-06 | 120 | 163 | 2179 | MPV |
| FIAT ULYSSE (179_) Construction Year to 201101 Fitting Position Rear Axle | 2008-03 - 2011-06 | 125 | 170 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 100 | 136 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 150 | 204 | 2946 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2003-07 - 2010-11 | 79 | 107 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 80 | 109 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-06 - 2010-11 | 88 | 120 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-07 - 2010-11 | 100 | 136 | 1997 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2002-09 - 2010-11 | 94 | 128 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2006-04 - 2010-11 | 120 | 163 | 2179 | MPV |
| LANCIA PHEDRA (179_) Construction Year to 201009 Fitting Position Rear Axle | 2008-03 - 2010-11 | 125 | 170 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 100 | 136 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2005-09 - | 103 | 140 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 116 | 158 | 2230 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 150 | 204 | 2946 | MPV |
| PEUGEOT 807 (EB_) Fitting Position Rear Axle | 2002-06 - 2006-05 | 79 | 107 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 200605 Fitting Position Rear Axle | 2004-04 - | 80 | 109 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200611 Construction Year to 201406 Fitting Position Rear Axle | 2006-02 - | 88 | 120 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2006-06 - | 100 | 136 | 1997 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2009-06 - | 120 | 163 | 1997 | MPV |
| PEUGEOT 807 (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 100 | 136 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year to 201406 Fitting Position Rear Axle | 2002-06 - | 94 | 128 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Construction Year to 201406 Fitting Position Rear Axle | 2006-06 - | 120 | 163 | 2179 | MPV |
| PEUGEOT 807 (EB_) Construction Year from 200710 Fitting Position Rear Axle | 2006-06 - 2010-06 | 125 | 170 | 2179 | MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2002-06 - 2006-05 | 79 | 107 | 1997 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 80 | 109 | 1997 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2004-04 - 2006-05 | 94 | 128 | 2179 | Box Body/MPV |
| PEUGEOT 807 Van (EB_) Fitting Position Rear Axle | 2010-05 - | 120 | 163 | 1997 | Box Body/MPV |

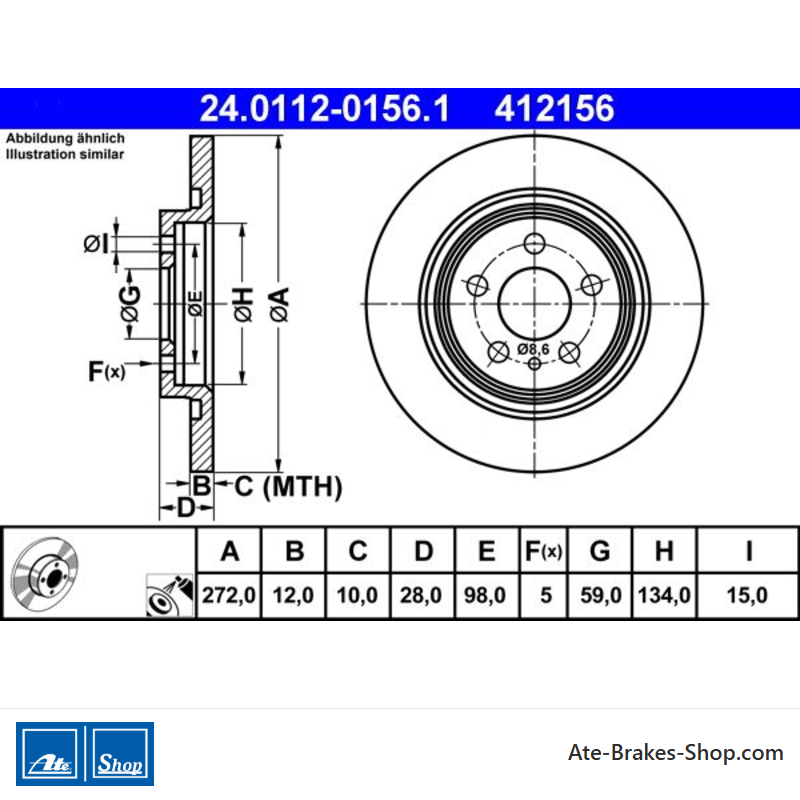

24.0112-0156.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
Fiat
Lancia
Peugeot - Handelsnummer
- 412156
- Land van Herkomst
- Tsjechië
- Hoogte
- 28,0
- Buitendiameter [mm]
- 272,0
- Remschijfdikte [mm]
- 12,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,0
- Binnendiameter [mm]
- 134,0
- Bordiameter [mm]
- 15,0
- Minimale dikte [mm]
- 10,0
Specifieke referenties
- ean13
- 4006633105804
- MPN
- 2401120156102
ATE 24.0112-0156.1
(240112-01561)
- Buitendiameter [mm]: 272,0
- Binnendiameter [mm]: 134,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412156
