ATE Disco de freno original de 2 piezas (24011601041) para Volkswagen (VW)
105,27 €
(impuestos inc.)
87,00 € fiscales excl.
Número de parte:
ATE 24.0116-0104.1
(240116-01041)
- Diámetro exterior [mm]: 258,0
- Diámetro interior [mm]: 67,9
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416104
Información logística:
- Código Ean: 4006633113991
- Peso: 16.06kg
Specification of ATE 24.0116-0104.1 / 240116-01041 / 24011601041:
| OE Number | Reference info |
| VAG 251 407 617 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 M | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617M | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 G | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617G | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 L | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617L | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-10 - 1992-07 | 44 | 60 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-10 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1983-08 - 1989-02 | 66 | 90 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 42 | 57 | 1715 | Van |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 44 | 60 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-06 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-10 - 1992-07 | 42 | 57 | 1716 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-09 - 1992-07 | 44 | 60 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1992-07 | 51 | 70 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 42 | 57 | 1715 | Platform/Chassis |
24.0116-0104.1

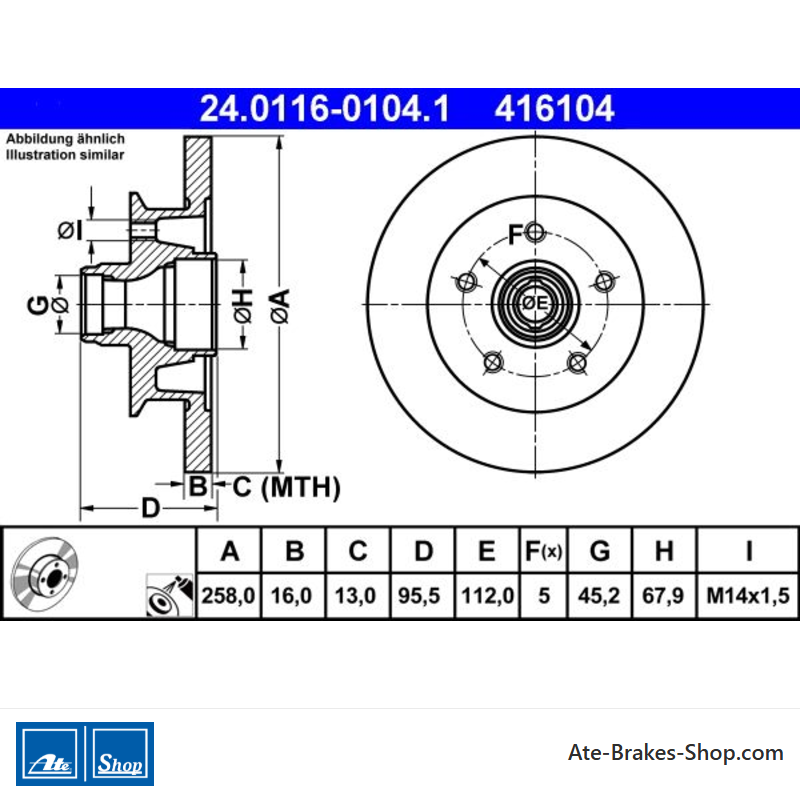

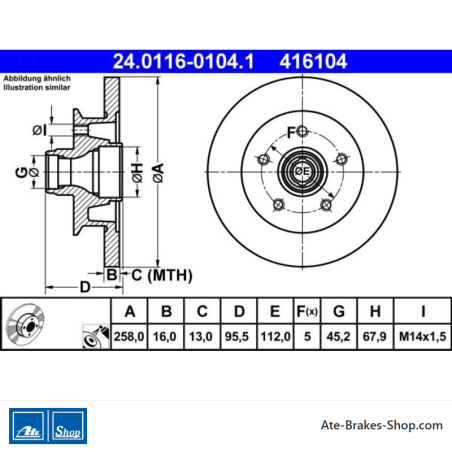

Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 416104
- País de origen
- Chequia
- Altura
- 95,5
- Diámetro exterior [mm]
- 258,0
- Grosor del disco de freno [mm]
- 16,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 112,0
- Diámetro de centrado [mm]
- 45,2
- Diámetro interior [mm]
- 67,9
- Tamaño del hilo
- M14x1,5
- Espesor mínimo [mm]
- 13,0
Referencias específicas
- ean13
- 4006633113991
- MPN
- 2401160104101
ATE 24.0116-0104.1
(240116-01041)
- Diámetro exterior [mm]: 258,0
- Diámetro interior [mm]: 67,9
- Grosor del disco de freno [mm]: 16,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 416104
