ATE Originele 2-delige remschijf (24011601041) voor Volkswagen (VW)
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0116-0104.1
(240116-01041)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 67,9
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416104
Logistieke informatie:
- Ean Code: 4006633113991
- Gewicht: 16.06kg
Specification of ATE 24.0116-0104.1 / 240116-01041 / 24011601041:
| OE Number | Reference info |
| VAG 251 407 617 D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 M | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617M | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617K | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 G | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617G | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251 407 617 L | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 251407617L | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-10 - 1992-07 | 44 | 60 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-10 - 1992-07 | 57 | 78 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1983-08 - 1989-02 | 66 | 90 | 1913 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1992-07 | 51 | 69 | 1588 | Van |
| VW TRANSPORTER T3 Van (24_, 25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 42 | 57 | 1715 | Van |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 44 | 60 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-06 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 82 | 112 | 2109 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-08 - 1992-07 | 51 | 70 | 1588 | Bus |
| VW TRANSPORTER T3 Bus (25_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-10 - 1992-07 | 42 | 57 | 1716 | Bus |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-09 - 1992-07 | 44 | 60 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1982-08 - 1992-07 | 57 | 78 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1989-02 | 61 | 83 | 1913 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1979-05 - 1986-04 | 51 | 69 | 1970 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1989-07 - 1992-07 | 68 | 92 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 70 | 95 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1986-03 - 1992-07 | 82 | 112 | 2109 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1981-01 - 1987-07 | 37 | 50 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Construction Year from 198508 Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1984-10 - 1992-07 | 51 | 70 | 1588 | Platform/Chassis |
| VW TRANSPORTER T3 Platform/Chassis (24_) Brake Caliper Type Fist-type Caliper Fitting Position Front Axle | 1985-08 - 1992-07 | 42 | 57 | 1715 | Platform/Chassis |
24.0116-0104.1

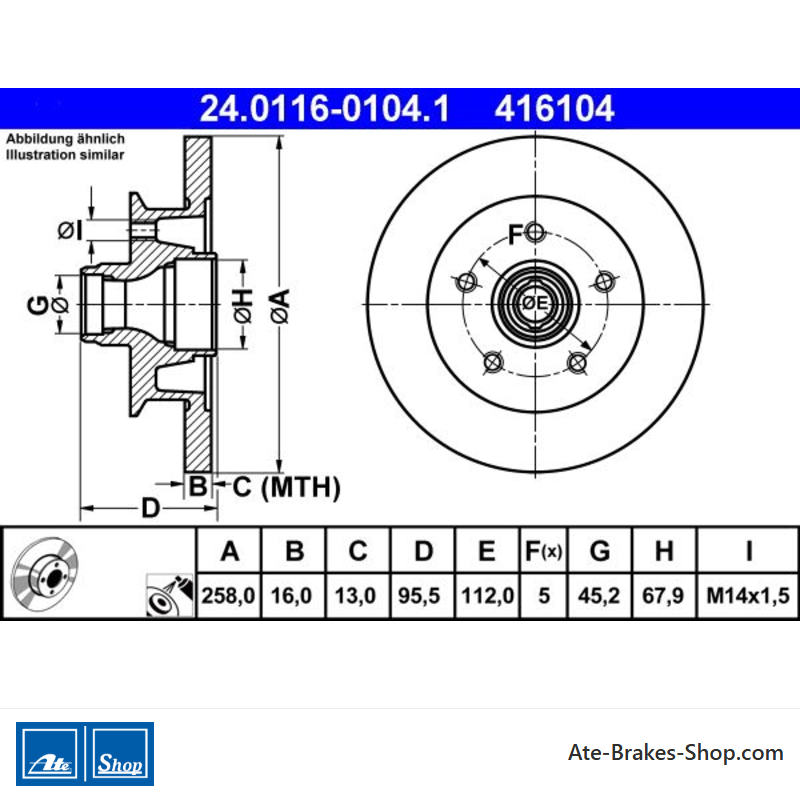

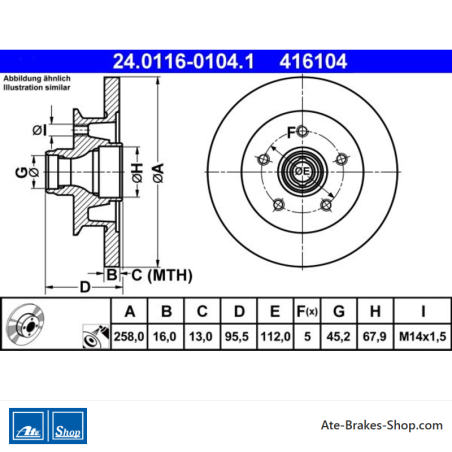

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 416104
- Land van Herkomst
- Tsjechië
- Hoogte
- 95,5
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 16,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 45,2
- Binnendiameter [mm]
- 67,9
- Draadmaat
- M14x1,5
- Minimale dikte [mm]
- 13,0
Specifieke referenties
- ean13
- 4006633113991
- MPN
- 2401160104101
ATE 24.0116-0104.1
(240116-01041)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 67,9
- Remschijfdikte [mm]: 16,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 416104
