ATE Disco de freno original (24013601212) para BMW
225,06 €
(impuestos inc.)
186,00 € fiscales excl.
Número de parte:
ATE 24.0136-0121.2
(240136-01212)
- Diámetro exterior [mm]: 374,0
- Diámetro interior [mm]: 153,8
- Grosor del disco de freno [mm]: 36,0
- Número de agujeros de perno: 5
- Número de intercambio: 436121
Información logística:
- Código Ean: 4006633372503
- Peso: 15.13kg

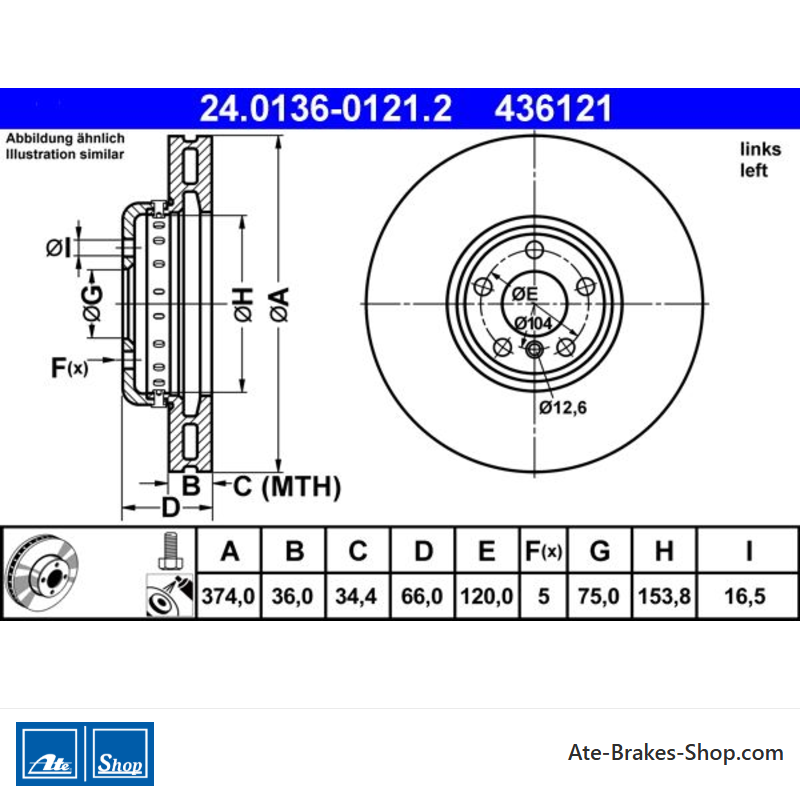

Specification of ATE 24.0136-0121.2 / 240136-01212 / 24013601212:
| OE Number | Reference info |
| BMW 34 11 6 783 777 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116783777 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 11 6 789 543 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116789543 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 5 Gran Turismo (F07) Construction Year from 200910 Fitting Position Front Axle Left | 2009-08 - 2012-06 | 300 | 408 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Construction Year from 201009 Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2010-06 - 2012-06 | 300 | 408 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Fitting Position Front Axle Left | 2012-07 - 2017-02 | 330 | 449 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2017-02 | 330 | 449 | 4395 | Hatchback |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2010-04 - 2012-06 | 342 | 465 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2008-09 - 2012-06 | 300 | 408 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2009-09 - 2012-06 | 300 | 408 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2015-06 | 330 | 449 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2015-06 | 330 | 449 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Fitting Position Front Axle Left | 2009-09 - 2015-12 | 400 | 544 | 5972 | Saloon |
| BMW 7 (F01, F02, F03, F04) Fitting Position Front Axle Left | 2012-07 - 2015-12 | 280 | 381 | 2993 | Saloon |
24.0136-0121.2
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- BMW
- Número de Comercio
- 436121
- País de origen
- Italia
- Información adicional
- con tornillos/tornillos
- Altura
- 66,0
- Diámetro exterior [mm]
- 374,0
- Grosor del disco de freno [mm]
- 36,0
- Tipo de disco de freno
- Disco de freno de dos piezas
Ventilado - Procesamiento
- Alto en carbono
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 120,0
- Diámetro de centrado [mm]
- 75,0
- Diámetro interior [mm]
- 153,8
- Diámetro del diámetro del diámetro [mm]
- 16,5
- Espesor mínimo [mm]
- 34,4
Referencias específicas
- ean13
- 4006633372503
- MPN
- 2401360121202
ATE 24.0136-0121.2
(240136-01212)
- Diámetro exterior [mm]: 374,0
- Diámetro interior [mm]: 153,8
- Grosor del disco de freno [mm]: 36,0
- Número de agujeros de perno: 5
- Número de intercambio: 436121
