ATE Originele remschijf (24013601212) voor BMW
€ 225,06
(incl. btw)
€ 186,00 belastingexcl.
Onderdeelnummer:
ATE 24.0136-0121.2
(240136-01212)
- Buitendiameter [mm]: 374,0
- Binnendiameter [mm]: 153,8
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436121
Logistieke informatie:
- Ean Code: 4006633372503
- Gewicht: 15.13kg
Specification of ATE 24.0136-0121.2 / 240136-01212 / 24013601212:
| OE Number | Reference info |
| BMW 34 11 6 783 777 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116783777 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 11 6 789 543 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34116789543 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 5 Gran Turismo (F07) Construction Year from 200910 Fitting Position Front Axle Left | 2009-08 - 2012-06 | 300 | 408 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Construction Year from 201009 Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2010-06 - 2012-06 | 300 | 408 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Fitting Position Front Axle Left | 2012-07 - 2017-02 | 330 | 449 | 4395 | Hatchback |
| BMW 5 Gran Turismo (F07) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2017-02 | 330 | 449 | 4395 | Hatchback |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2010-04 - 2012-06 | 342 | 465 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2008-09 - 2012-06 | 300 | 408 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2009-09 - 2012-06 | 300 | 408 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2015-06 | 330 | 449 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Braking System for vehicles with reinforced brakes Fitting Position Front Axle Left | 2012-07 - 2015-06 | 330 | 449 | 4395 | Saloon |
| BMW 7 (F01, F02, F03, F04) Fitting Position Front Axle Left | 2009-09 - 2015-12 | 400 | 544 | 5972 | Saloon |
| BMW 7 (F01, F02, F03, F04) Fitting Position Front Axle Left | 2012-07 - 2015-12 | 280 | 381 | 2993 | Saloon |

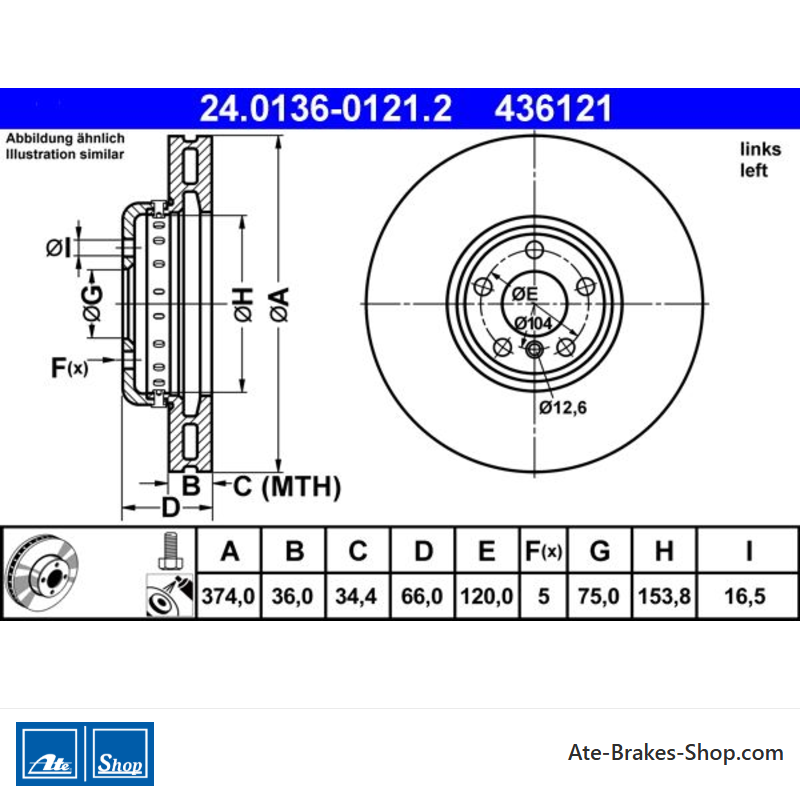

24.0136-0121.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 436121
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 66,0
- Buitendiameter [mm]
- 374,0
- Remschijfdikte [mm]
- 36,0
- Type remschijf
- Geventileerd
Tweedelige remschijf - Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 153,8
- Bordiameter [mm]
- 16,5
- Minimale dikte [mm]
- 34,4
Specifieke referenties
- ean13
- 4006633372503
- MPN
- 2401360121202
ATE 24.0136-0121.2
(240136-01212)
- Buitendiameter [mm]: 374,0
- Binnendiameter [mm]: 153,8
- Remschijfdikte [mm]: 36,0
- Aantal bolt holes: 5
- Handelsnummer: 436121
