ATE Originele 2-delige remschijf (24010901311) voor Mazda
€ 65,34
(incl. btw)
€ 54,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0131.1
(240109-01311)
- Buitendiameter [mm]: 251,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409131
Logistieke informatie:
- Ean Code: 4006633025669
- Gewicht: 6.21kg
Specification of ATE 24.0109-0131.1 / 240109-01311 / 24010901311:
| OE Number | Reference info |
| MAZDA BR74-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BB4C-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BR74-26-251E | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BB4C-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BB4C-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA B530-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BB4C-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BR74-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 94 | 128 | 1840 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 103 | 140 | 1840 | Hatchback |
| MAZDA 323 C IV (BG) Fitting Position Rear Axle | 1990-09 - 1992-12 | 120 | 163 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 76 | 103 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 94 | 128 | 1840 | Hatchback |
| MAZDA 323 F IV (BG) Fitting Position Rear Axle | 1989-09 - 1993-03 | 103 | 140 | 1840 | Hatchback |
| MAZDA 323 S IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-08 - 1994-07 | 76 | 103 | 1840 | Saloon |
| MAZDA 323 S IV (BG) Construction Year from 198909 Fitting Position Rear Axle | 1989-06 - 1994-07 | 94 | 128 | 1840 | Saloon |
| MAZDA 323 S IV (BG) Fitting Position Rear Axle | 1991-01 - 1994-07 | 120 | 163 | 1840 | Saloon |
| MAZDA MX-3 (EC) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1991-05 - 1993-10 | 66 | 90 | 1597 | Coupe |
| MAZDA MX-3 (EC) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1993-11 - 1998-09 | 79 | 107 | 1597 | Coupe |
| MAZDA MX-3 (EC) Fitting Position Rear Axle | 1994-01 - 1997-10 | 95 | 129 | 1845 | Coupe |
| MAZDA MX-3 (EC) Fitting Position Rear Axle | 1992-01 - 1994-01 | 98 | 133 | 1845 | Coupe |
| MAZDA MX-5 I (NA) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1995-01 - 1998-04 | 66 | 90 | 1598 | Convertible |
| MAZDA MX-5 I (NA) Construction Year to 199308 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1990-05 - 1994-01 | 85 | 115 | 1597 | Convertible |
| MAZDA MX-5 I (NA) Fitting Position Rear Axle | 1993-01 - 1998-04 | 96 | 130 | 1840 | Convertible |
| MAZDA MX-5 II (NB) Construction Year to 200307 Fitting Position Rear Axle | 1998-05 - 2005-10 | 81 | 110 | 1597 | Convertible |
| MAZDA MX-5 II (NB) Construction Year from 199805 Fitting Position Rear Axle | 1998-01 - 2002-07 | 103 | 140 | 1839 | Convertible |
| MAZDA MX-5 II (NB) Construction Year to 200307 Fitting Position Rear Axle | 1998-05 - 2005-10 | 103 | 140 | 1840 | Convertible |

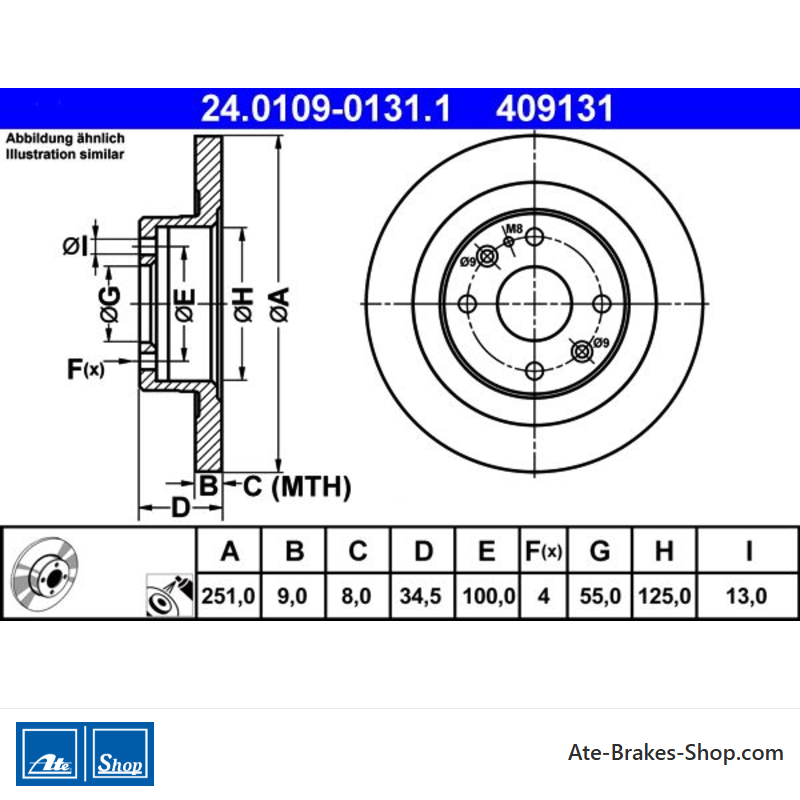

24.0109-0131.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 409131
- Land van Herkomst
- China
- Hoogte
- 34,5
- Buitendiameter [mm]
- 251,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 125,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633025669
- MPN
- 2401090131102
ATE 24.0109-0131.1
(240109-01311)
- Buitendiameter [mm]: 251,0
- Binnendiameter [mm]: 125,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409131
