ATE Originele 2-delige remschijf (24011201991) voor Fiat
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0112-0199.1
(240112-01991)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 167,5
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412199
Logistieke informatie:
- Ean Code: 4006633390293
- Gewicht: 11.32kg

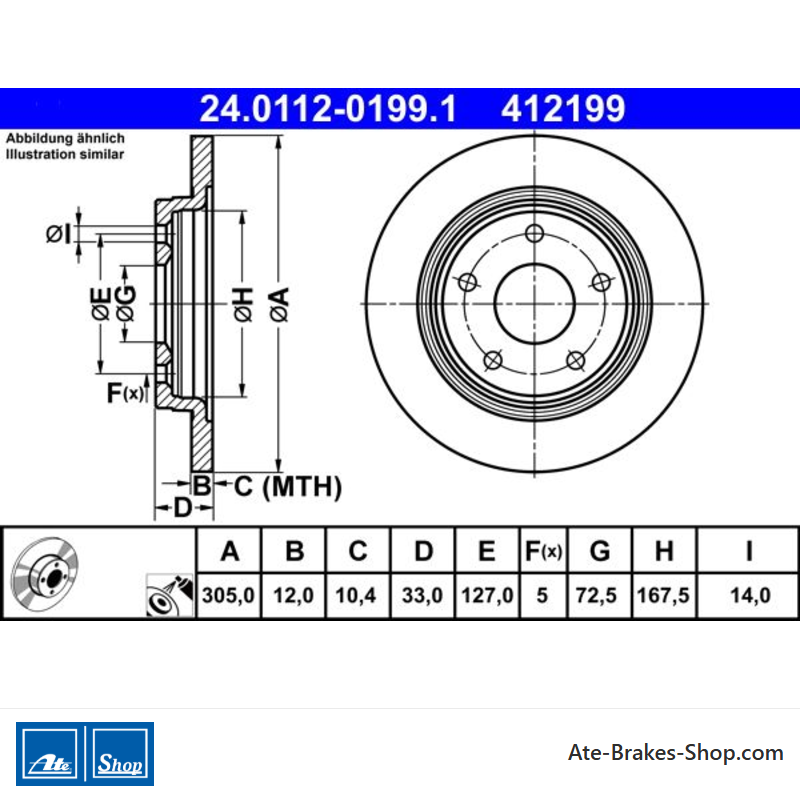

Specification of ATE 24.0112-0199.1 / 240112-01991 / 24011201991:
| OE Number | Reference info |
| FIAT K04721996AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT K04721996AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 2360 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2016-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 206 | 280 | 3604 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 100 | 136 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 103 | 140 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 120 | 163 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |
| FIAT FREEMONT (345_) Fitting Position Rear Axle Equipment Code BRF | 2011-08 - 2015-12 | 125 | 170 | 1956 | MPV |
24.0112-0199.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Fiat
- Handelsnummer
- 412199
- Land van Herkomst
- Tsjechië
- Hoogte
- 33,0
- Buitendiameter [mm]
- 305,0
- Remschijfdikte [mm]
- 12,0
- Type remschijf
- Solide
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 127,0
- Centreringsdiameter [mm]
- 72,5
- Binnendiameter [mm]
- 167,5
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 10,4
Specifieke referenties
- ean13
- 4006633390293
- MPN
- 2401120199102
ATE 24.0112-0199.1
(240112-01991)
- Buitendiameter [mm]: 305,0
- Binnendiameter [mm]: 167,5
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412199
