ATE Originele 2-delige remschijf (24012701041) voor Isuzu
€ 137,94
(incl. btw)
€ 114,00 belastingexcl.
Onderdeelnummer:
ATE 24.0127-0104.1
(240127-01041)

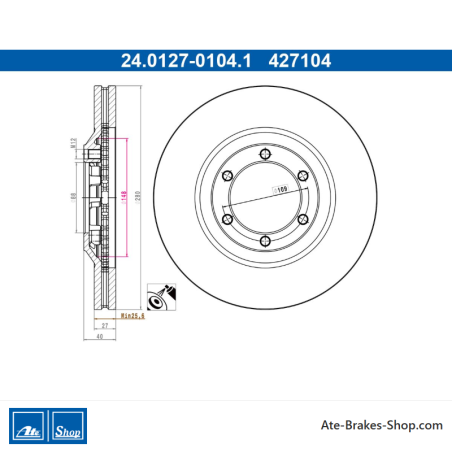

- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 148,0
- Remschijfdikte [mm]: 27,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 427104
Logistieke informatie:
- Ean Code: 4006633470056
- Gewicht: 14.10kg
Specification of ATE 24.0127-0104.1 / 240127-01041 / 24012701041:
| OE Number | Reference info |
| ISUZU 8-98006-259-0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ISUZU 8-97360-678-0 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ISUZU 8-98006-259-1 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ISUZU D-MAX I (TFR, TFS) Fitting Position Front Axle Construction Year from 200601 | 2002-10 - 2012-06 | 74 | 101 | 2499 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Construction Year to 201205 Fitting Position Front Axle | 2006-10 - 2012-06 | 100 | 136 | 2499 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Construction Year to 201205 Fitting Position Front Axle | 2007-01 - 2012-06 | 100 | 136 | 2499 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Construction Year to 201205 Fitting Position Front Axle | 2007-01 - 2012-06 | 120 | 163 | 2999 | Pickup |
| ISUZU D-MAX I (TFR, TFS) Construction Year to 201205 Fitting Position Front Axle | 2007-01 - 2012-06 | 120 | 163 | 2999 | Pickup |
| ISUZU D-MAX II (TFR, TFS) Construction Year from 201510 Fitting Position Front Axle Vehicle Equipment for vehicles with Single Cab | 2012-04 - 2018-12 | 120 | 163 | 2499 | Pickup |
| ISUZU D-MAX I Platform/Chassis (TFR, TFS) Fitting Position Front Axle | 2006-10 - 2012-10 | 100 | 136 | 2499 | Platform/Chassis |
| ISUZU D-MAX I Platform/Chassis (TFR, TFS) Construction Year to 201205 Fitting Position Front Axle | 2007-01 - 2012-06 | 120 | 163 | 2999 | Platform/Chassis |
| ISUZU D-MAX II Platform/Chassis (TFR, TFS) Construction Year from 201510 Fitting Position Front Axle Vehicle Equipment for vehicles with Single Cab | 2012-06 - | 120 | 163 | 2499 | Platform/Chassis |
24.0127-0104.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Isuzu
- Handelsnummer
- 427104
- Land van Herkomst
- Italië
- Hoogte
- 40,0
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 27,0
- Type remschijf
- Geventileerd
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 109,0
- Centreringsdiameter [mm]
- 88,0
- Binnendiameter [mm]
- 148,0
- Draadmaat
- M12x1,25
- Minimale dikte [mm]
- 25,6
Specifieke referenties
- ean13
- 4006633470056
- MPN
- 2401270104102
ATE 24.0127-0104.1
(240127-01041)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 148,0
- Remschijfdikte [mm]: 27,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 427104
